AED A102

AED A102

Every year SAC (Sudden Cardiac Arrest) threats lives of millions of people globally. An easy operation and reliable technology is vital for life saving. We are always ready, for every brilliant life in the world.

A102样图
Easy to use

Only two buttons to operate the AED, a green ON/OFF button to turn on the AED and the red button to deliver the shock to the victim. With the clear and simple audio and visual prompts, the AED will guide you confidently through the defibrillation step by step.

Always be ready

Daily, weekly and monthly selftest ensure the AED always be ready to save life.

Reliable technology

We use Biphasic technology in our AED, more and more studies have proved that compare with Monophasic Waveform, biphasic waveform has better defibrillation efficiency and less current.

Accurate analysis algorithm

Only two buttons to operate the AED, a green ON/OFF button to turn on the AED and the red button to deliver the shock to the victim. With the clear and simple audio and visual prompts, the AED will guide you confidently through the defibrillation step by step.

Light Weight

Only 1.9Kg weight, the lightweight and compact size design help first responder to carry the AED to the victim's side quickly.

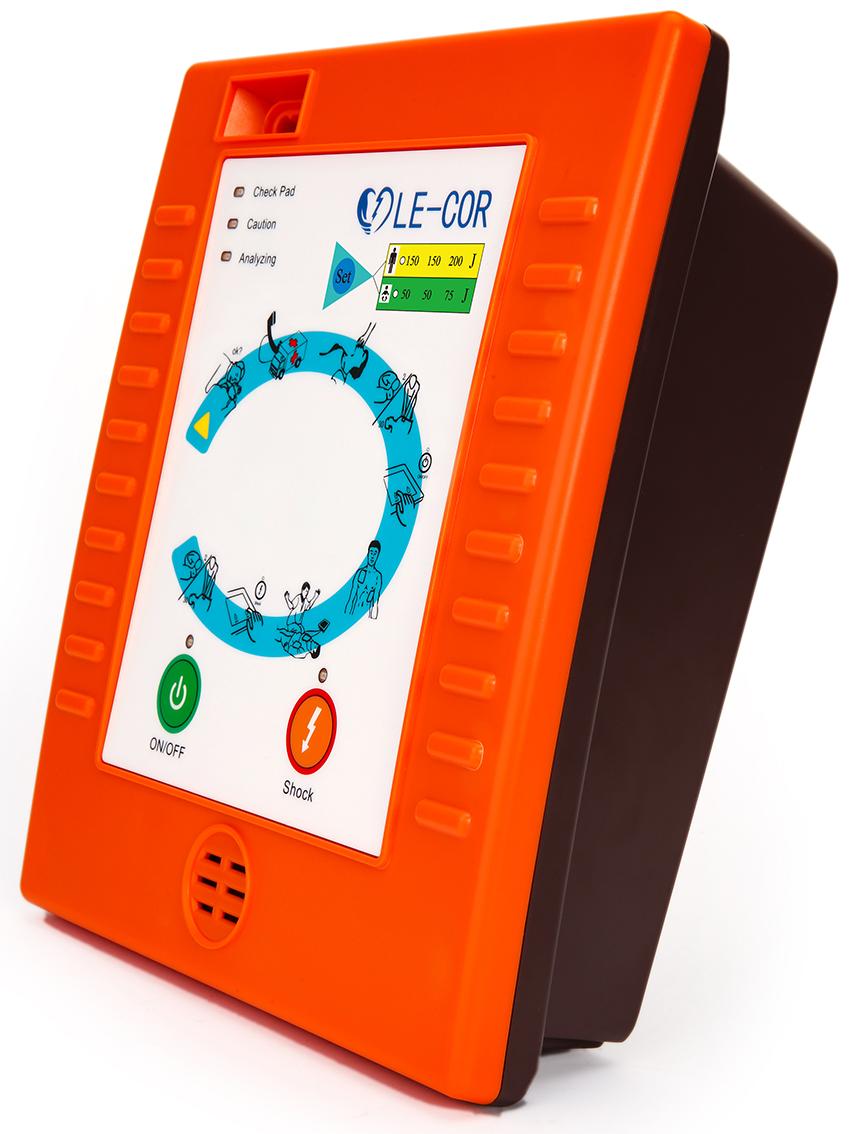

A102侧样图

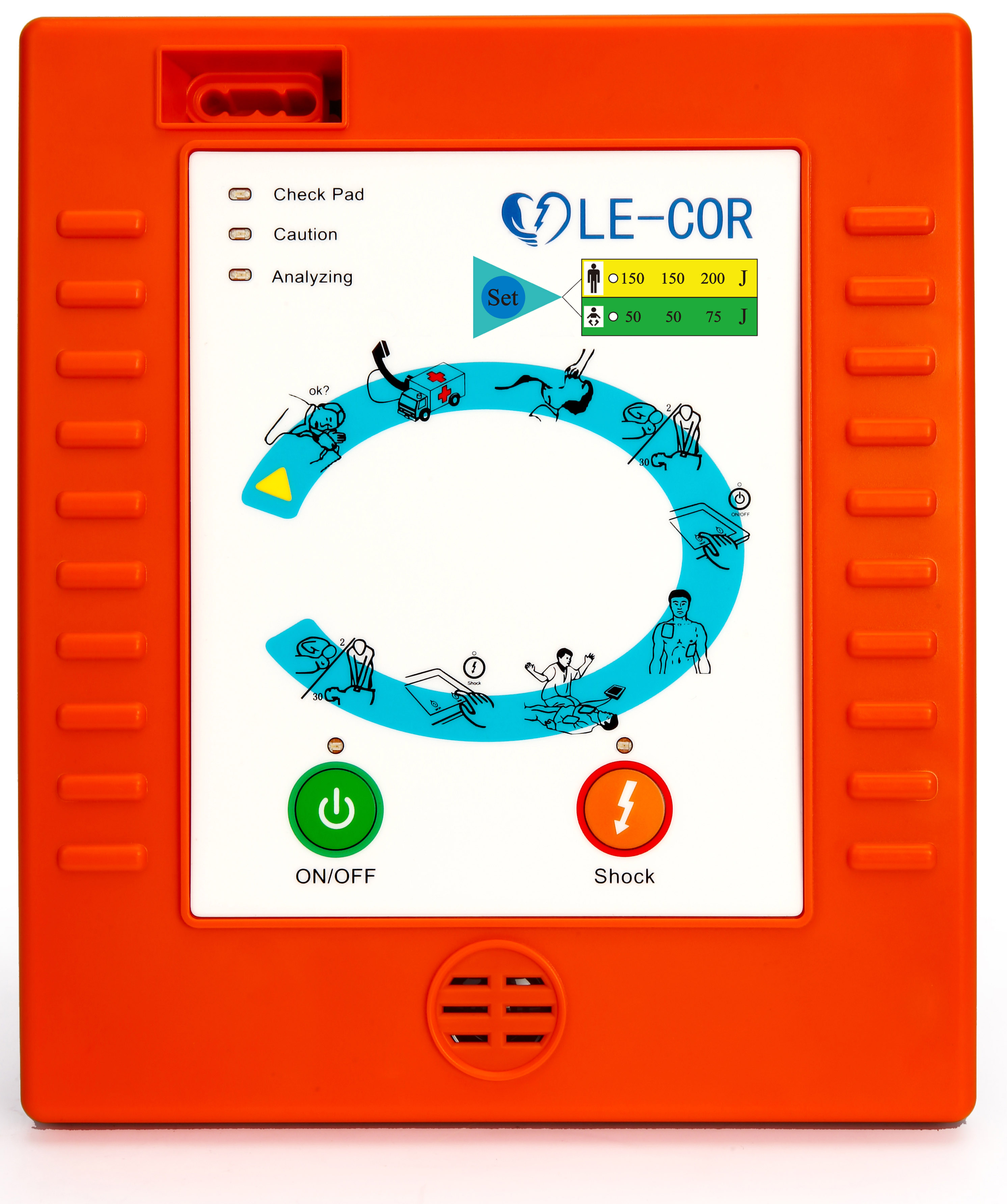

A102样图
Clear Voice prompt

The clear, real human voice will reduce the stress when people is saving a SCA victim. No hesitation, just follow the voice prompt, to do the each step of CPR and defibrillation firmly and confidently.

Wide-range environments

In order to save the SCA victims in the wide-range environments, the Acoresmed AED is design to meet the requirements of IP55.a

Specifications

Defibrillator
Type
Automatic External Defibrillator
Model
Cor-RES A6
Waveform
Biphasic truncated exponential
Energy
200 - Joules
Energy Sequence
150 , 150 , 200 - Joules
Visual Indicators
LED prompts
Voice Prompt
Extensive voice prompt
Control
Two buttons:ON/OFF,Shock
Charge time
(New, at 25℃)
Less than 8 sec.to 150J
Less than12 sec. to 200J
Environmental
Operating Temperature
0℃ to 40℃
Operation Humidity
Relative humidity between 30% and 95%(non-condensing)
Storage Temperature
(without battery)
-20℃ to 55℃
Storage Humidity
(without battery)
Up to 93%(non-condensing)
Physical
Dimensions
Depth:256mm,Width:220mm
Height:(L:65mm,H:80mm)
Weight(with battery)
1.9Kg(4.2Pounds)
