AED A114

The professional A114 automated external defibrillator(AED) is designed for everyone. Easy to use and manage, A114 AED gives you the power and confidence to deliver safe, effective lifesaving care.

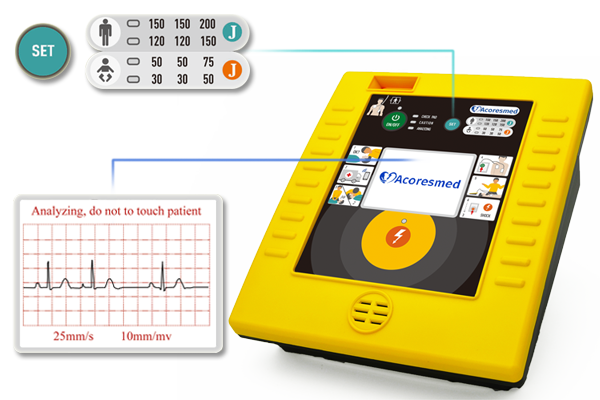

A114

The A114 AED combines advanced technology with the simplicity and portability required for use by the general public in a sudden cardiac arrest (SCA) emergency. It is designed to enable you to help save a life in extraordinary circumstances. Can be used on persons of any age including adults and children. Its clear guidance, including onscreen and audio prompts and on-screen graphics for the basic rescuer or ECG display instill the confidence you need when administering therapy to a person in cardiac arrest. Powered by a long-life disposable battery, the A114 AED tests itself regularly to ensure readiness. And most important, it’s effective. This powerful AED combines basic guidance with advanced operational control, enabling responders to deliver fast, appropriate treatment. Defibrillation therapy are clinically proven in over 10 years of use.

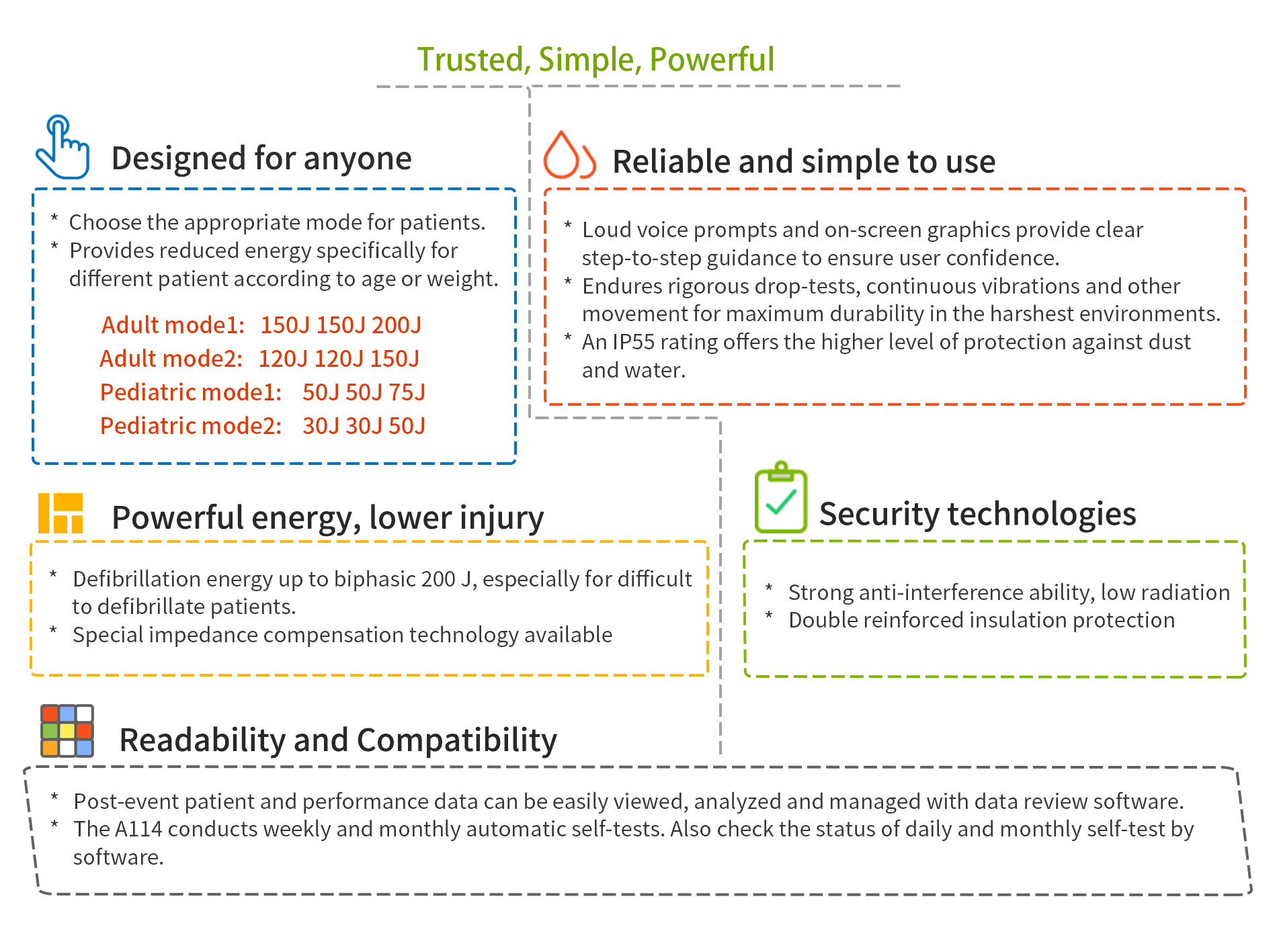

AED A114-features

Specifications

Defibrillator
Type
Automatic External Defibrillator
Model
A114
Waveform
Biphasic truncated exponential
Energy
200 - Joules
Energy Sequence
150 , 150 , 200 - Joules
Visual Indicators
LED prompts
Voice Prompt
Extensive voice prompt
Control
Three buttons:ON/OFF,Shock,SET
Charge time
(New, at 25℃)
Less than 8 sec.to 150J
Less than12 sec. to 200J
Environmental
Operating Temperature
0℃ to 50℃
Operation Humidity
Relative humidity between 15% and 95%(non-condensing)
Storage Temperature
(without battery)
-20℃ to 55℃
Storage Humidity
(without battery)
Up to 93%(non-condensing)
Physical
Dimensions
Depth:256mm,Width:220mm
Height:(L:65mm,H:80mm)
Weight(with battery)
1.9Kg(4.2Pounds)
