AED A101

Every year SAC (Sudden Cardiac Arrest) threats lives of millions of people globally. Early defibrillation has been shown to be the most effective treatment for out-of-hospital cardiac arrest victims. An easy operation and reliable technology is vital for life saving. We are always ready, for every brilliant life in the world.

A101

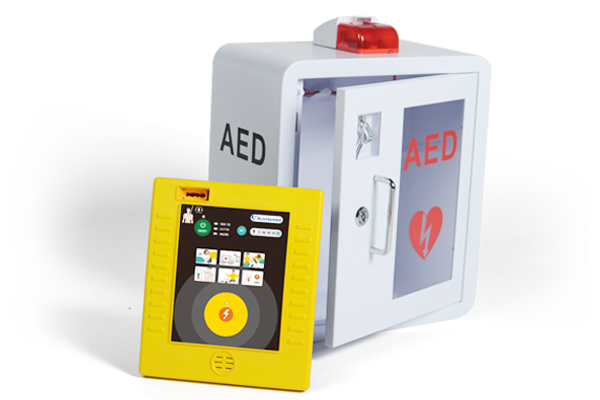

The A101 automated external defibrillator(AED) automatically recognizes ventricular fibrillation and other ventricular tachycardia and guides operators through the defibrillation process. When properly connected to a patient who is unconscious, not breathing, and without a pulse, the A101 AED analyzes the patient's heart rhythm, provides visual and audio instruction prompts, determines if a shockable situation exists and then indicates user to press shock button.

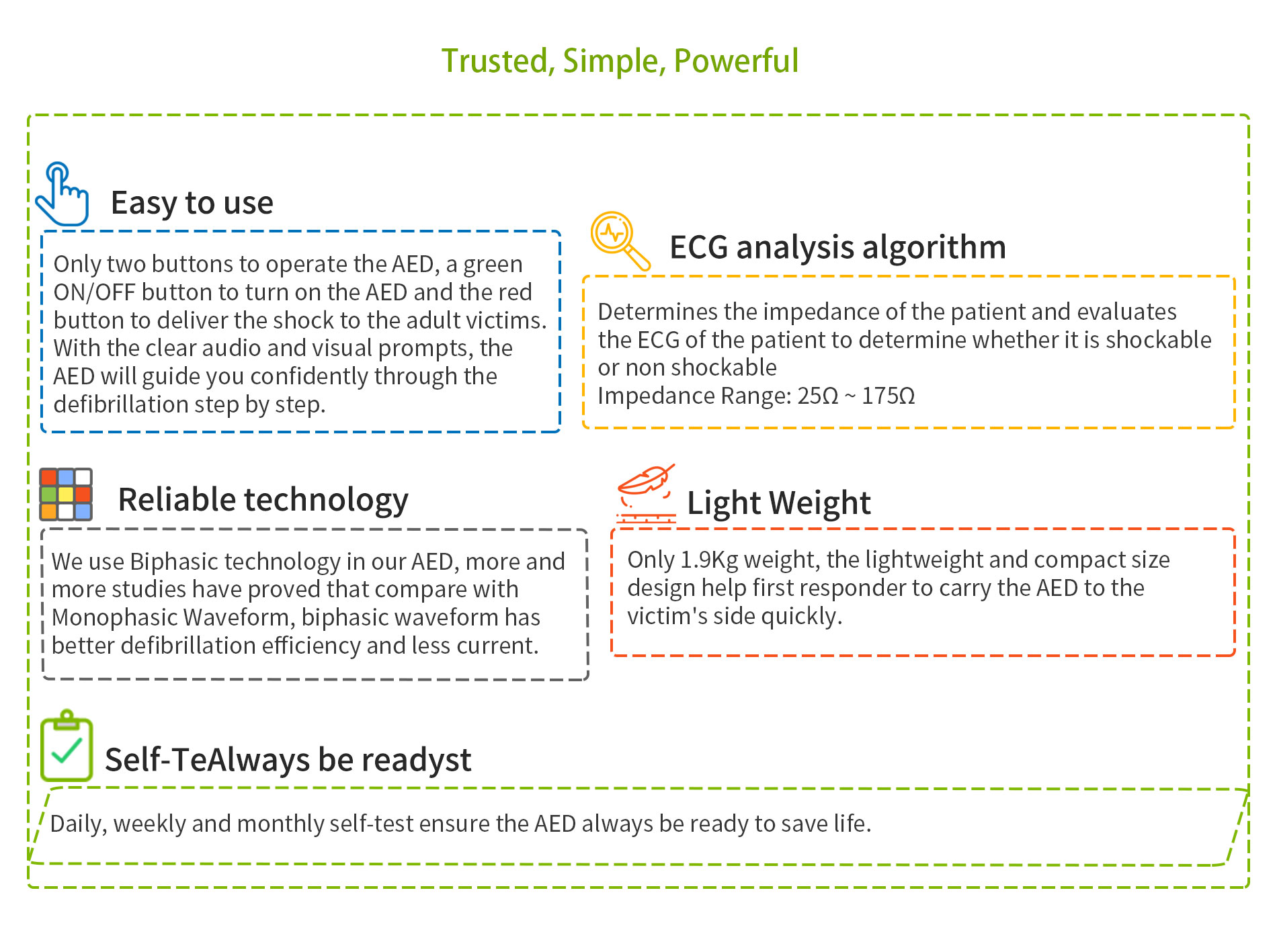

AED A102-features

Specifications

Defibrillator
Type
Automatic External Defibrillator
Model
A101
Waveform
Biphasic truncated exponential
Energy
200 - Joules
Energy Sequence
150 , 150 , 200 - Joules
Visual Indicators
LED prompts
Voice Prompt
Extensive voice prompt
Control
Three buttons:ON/OFF,Shock,SET
Charge time
(New, at 25℃)
Less than 8 sec.to 150J
Less than12 sec. to 200J
Environmental
Operating Temperature
0℃ to 50℃
Operation Humidity
Relative humidity between 15% and 95%(non-condensing)
Storage Temperature
(without battery)
-20℃ to 55℃
Storage Humidity
(without battery)
Up to 93%(non-condensing)
Physical
Dimensions
Depth:256mm,Width:220mm
Height:(L:65mm,H:80mm)
Weight(with battery)
1.9Kg(4.2Pounds)
