AED A112
Sudden cardiac arrest (SCA) can occur anytime, to anyone, at any place, and may threaten the patient’s life if appropriate CPR and/or electrical shock with a defibrillator are not applied within a few minutes.

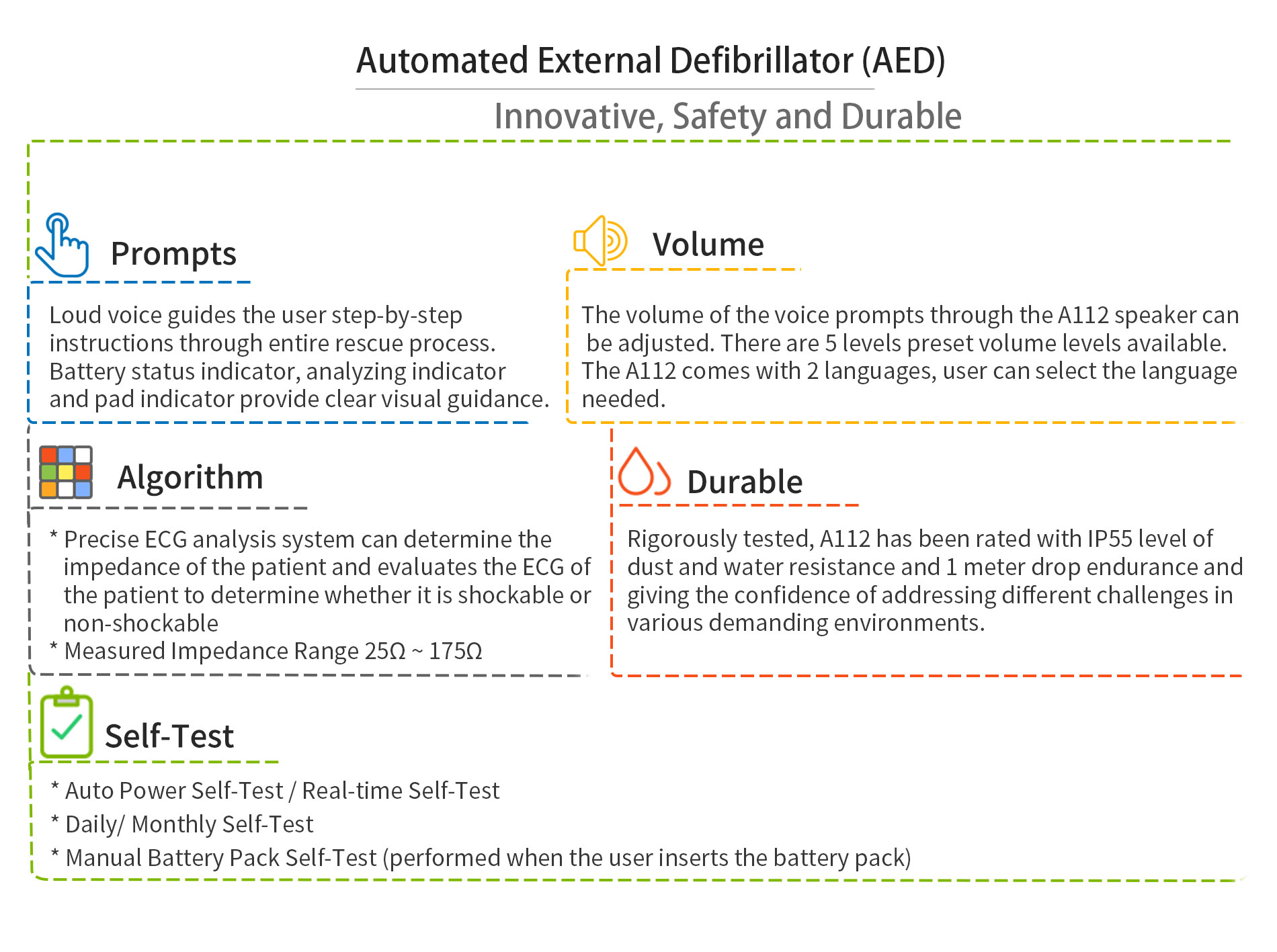

The device is a semi-automated external defibrillator that can be used on sudden cardiac arrest (SCA) patients. The AED automatically reads the SCA patient’s ECG and determines if a cardiac arrest requiring defibrillation has occurred, allowing licensed medical professionals and the general public to easily operate it.
Specifications
Defibrillator
Type
Automated External Defibrillator
Model
A112
Waveform
Biphasic truncated exponential
Max.Energy
200 - Joules
Energy Sequence
150 , 150 , 200 - Joules
(Adult Mode)
Visual Prompts
Color LCD & LED indicators
Voice Prompts
Extensive voice prompts
Control
Three buttons:ON/OFF,Shock,SET
Charge time
(New, at 25℃)
(New, at 25℃)
Less than 8 sec.to 150J
Less than12 sec. to 200J
Less than12 sec. to 200J
Environmental
Operating Temperature
0℃ to 50℃
Operation Humidity
Relative humidity between 15% and 95%(non-condensing)
Storage Temperature
(without battery)
(without battery)
-20℃ to 55℃
Storage Humidity
(without battery)
(without battery)
Up to 93%(non-condensing)
Physical
Dimensions
Depth:256mm,Width:220mm
Height:(L:65mm,H:80mm)
Height:(L:65mm,H:80mm)
Weight(with battery)
1.9Kg(4.2Pounds)
