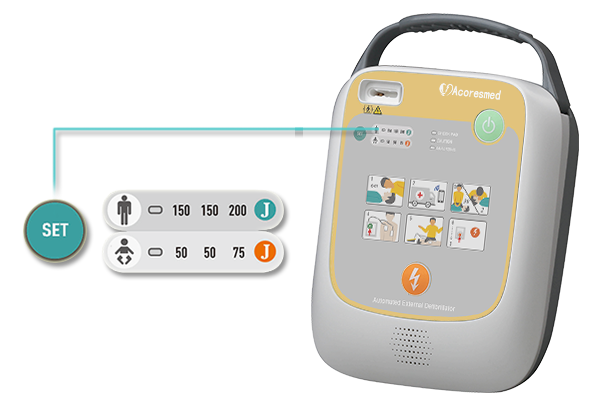

AED A102

The A102 automated external defibrillator (AED) includes all critical necessary features to provide the most advanced treatment for Sudden Cardiac Arrest. It is so simple to use that even non-medical personnel can effectively save lives. With adult and pediatric modes, automatic voice prompts guide the user through the rescue procedure, enabling efficient CPR to be administered in conjunction with AED use.

Specifications
Defibrillator
Type
Automated External Defibrillator
Model
A102
Waveform
Biphasic truncated exponential
Max.Energy
200 - Joules
Energy Sequence
150 , 150 , 200 - Joules
(Adult Mode)
Visual Prompts
LED indicators
Voice Prompts
Extensive voice prompts
Control
Three buttons:ON/OFF,Shock,SET
Charge time
(New, at 25℃)
(New, at 25℃)
Less than 8 sec.to 150J
Less than12 sec. to 200J
Less than12 sec. to 200J
Environmental
Operating Temperature
0℃ to 50℃
Operation Humidity
Relative humidity between 15% and 95%(non-condensing)
Storage Temperature
(without battery)
(without battery)
-20℃ to 55℃
Storage Humidity
(without battery)
(without battery)
Up to 93%(non-condensing)
Physical
Dimensions
Depth:256mm,Width:220mm
Height:(L:65mm,H:80mm)
Height:(L:65mm,H:80mm)
Weight(with battery)
1.9Kg(4.2Pounds)
